LED Torch Light Source

Description

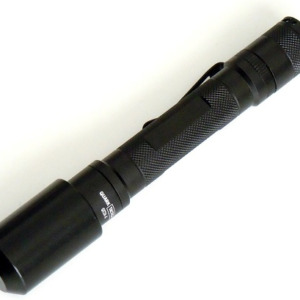

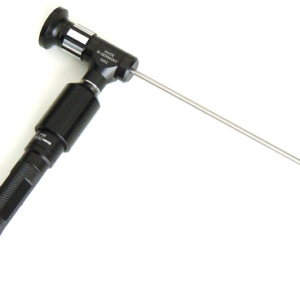

The RLED345.AA is a powerful 345 lumen LED torch fitted with a removable endoscope adapter.  Suitable for use with rigid or flexible endoscopes with an ACM male light guide input/post.  The adapter is screw fitting and creates a solid handle for the endoscope.

The latest CREE XPG R5LED emitter is used, and the torch runs for over 2 hours at maximum output, from 2x AA alkaline batteries, which are very inexpensive and readily available.

When not in use with endoscopes the torch can be removed from the  black anodised aluminium endoscope adapter and used in the traditional way.

Ideal for use with small diameter rigid endoscopes and micro fibrescopes.



Features

  • CNC machined, black anodised endoscope adapter
  • Compatible with all endoscopes with an ACM male fitting
  • Operates from 2 x AA alkaline batteries
  • Supplied with belt holster, lanyard and finger grip
  • Push fitting into endoscope adapter - enables traditional use of torch
  • Latest CREE XPG R5 345 lumen LED emitter
  • Battery life - 2hrs on MAX output setting

Technical Specifications

Light Output Connector ACM
Lamp Type CREE XPG R5 LED
Power Output 345 Lumens (at torch bezel)
Battery Type 2 x AA standard alkaline cells
Operating Time Over 2 hours on MAX
