Rigid Endoscopes (Borescopes) - Fixed Direction

Rigid Endoscopes (Borescopes) - Fixed Direction
Rigid Endoscopes (Borescopes) - Fixed Direction Rigid Endoscopes (Borescopes) - Fixed Direction

Watch Videos

youtube
Visit our youtube channel
get a quote Download Datasheet Download Manual

Description

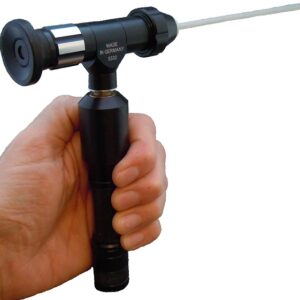

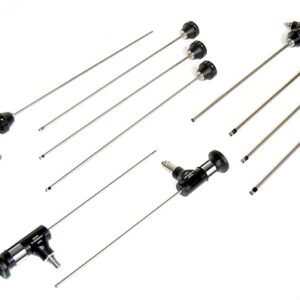

Rigid borescopes / micro borescopes with set viewing direction and adjustable focus. High quality rod lenses are used, surrounded by glass fibres for bright and even illumination of the subject. These instruments are watertight and designed to take pressures of up to 4 bar.  Maximum operating temperature 110°C.

All instruments are compatible with any RVA endoscopic camera, light source and viewing screen combination.

For interchangeable mirror tube type endoscopes, please see our Rigid Endoscopes (borescopes) multi-directional range.



Features

  • Huge range of sizes
  • Excellent image and build quality
  • Focussing eyepiece
  • Made in Germany

In stock now

Contact us for latest stock

Technical Specifications

Diameter 0.7mm - 12mm
Length 150mm - 1300mm
Viewing Direction 0°, 30°, 70°, 90°, 110°
Field of View 60° - 105°
Depth of Field 0.5mm - Infinity
Eyepiece Diameter 31.75mm
Light Input Connector ACM/WOLF/STORTZ
Operation Temperature up to 110°
Ingress Protection Watertight up to 4 bar
Camera Fitting Via eyepiece with separate adapter
